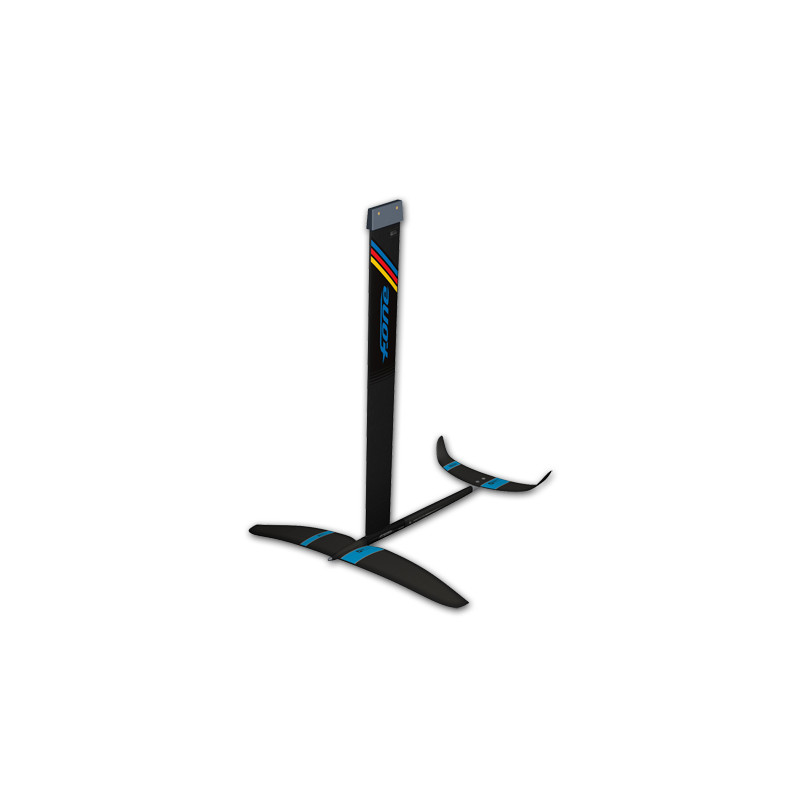

FREERIDE 900 CARBON WINDFOIL

Length: 95 cm
Chord: Bottom= 11 cm / Top= 13.2 cm
Thickness: Bottom = 1.2 cm / Top=1.33 cm
Weight: 1.50 kg (K-F BOX) 1.70 kg (DEEP K-F BOX)

Benefitting from the latest racing developments in terms of shape and construction, the F-ONE Carbon masts provide amazing speed potential with top precision in all conditions. With their high performance profile evolving from 1.2 cm thick at the bottom to 1.35 cm at the top, these masts deliver an impressive feeling of glide and top of the range performance.   The intricate profile and chord length prevent turbulence and make them very secure and stable at speed. Their elaborate carbon PRE-PREG one-shot molding construction makes sure these masts meet the required demand on torsion and bending stiffness to keep the control of the foil at any moment and especially when pushing hard. Equipped with the patented FAST CONNECTION DEVICE constructed from PRE-PREG carbon, these masts come with great modularity and ease of use as one single screw is all that’s needed to assemble the main parts together.

Area: 900cm²
Aspect Ratio: 7.1
Weight: 0.97 Kg*

Designed for downwind performance Windfoil, this wing is made to lift out of the water as soon as possible and glide at speed for exhilarating performances. Clearly the WINDSURF 900 wing is all about efficiency with its high lift section for an early lift off combined with large span and high aspect ratio for minimum drag. Inspired by the latest developments of the kitefoiling circuit, this wing is a true weapon. The WINDSURF 900 is built using the high technology PRE-PREG carbon process over a PU injected core. The FORGED CARBON central core remains at the heart of the assembly for maximum strength, stiffness and durability.

Area: 300 cm²
Aspect Ratio: 5.8
Weight: 0.24 kg

Solid, versatile and progressive, the Freeride stabilizer can be combined with any of the freeride or carving front wings and fits a very large range of practices.

Equipped with generous winglets, the stabilizer blade offers fantastic control with enough surface area to provide full confidence in all situations.

Built in Carbon Composite and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance which will help you get your foiling maneuvers in more easily.

Length: 42cm
Weight: 0.47 kg

Built out of Pre-preg carbon fibers around a steel core, the F-ONE fuselages are designed to be extremely stiff and provide perfect control with a low drag sectional area.

With a full stainless steel tail, the assembly with the stabilizer is solid and very reliable. The tail matches the angle of incidence required onto the stabilizer to guarantee an intuitive balance whatever the wing combo selected.

The 42cm fuselage provides better directional and pitch stability which helps a lot at lower and medium flying speeds. Recommended with Freeride 800, 600 wings.

With Pre-preg fabrics, the carbon fiber is directly impregnated with epoxy resin by its manufacturer; this guarantees a perfect ratio between epoxy and carbon, and represents the highest quality process. The material is stored in cooled rooms and catalyzes at 120° C in a mold.

The Pre-preg fibers must travel in refrigerated trucks and be stored frozen. The refined ratio between carbon fiber and epoxy resin provides the lightest weight with the best mechanical properties of carbon fiber.

1 PRE-PREG, multi-axial carbon layers

2 PRE-PREG with FORGED CARBON core

F-ONE windfoils are equipped with the fully conical Deep KF-BOX. Its shape makes it easy to connect and fits well with the thickness of the boards due to its moderate height. The Deep KF-BOX offers a perfect, tight support
